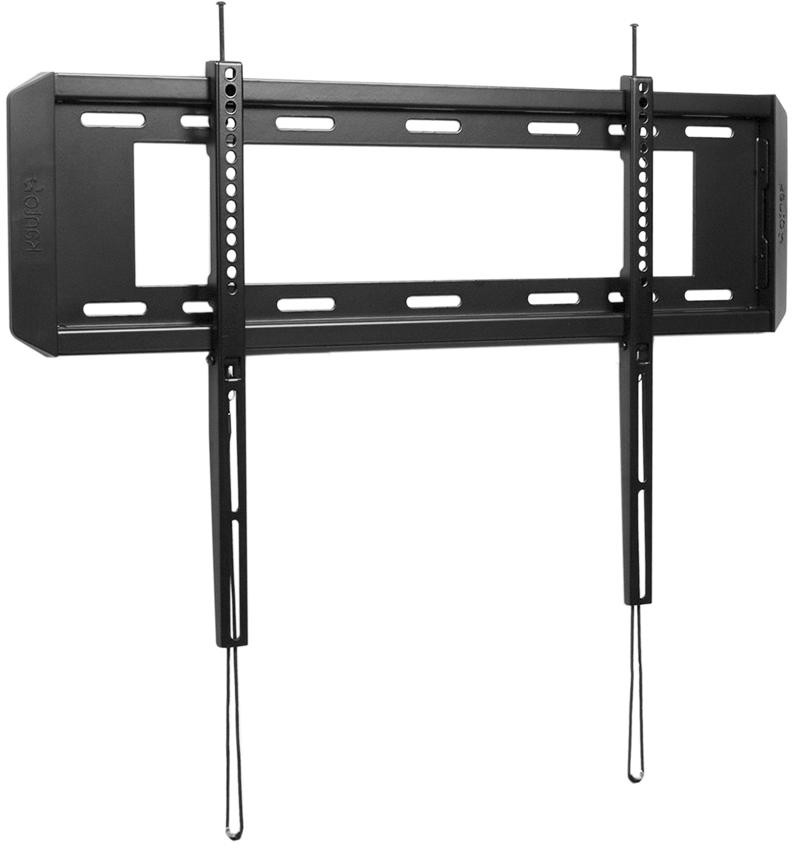

Now that you’ve invested in a TV that weighs up to 150 pounds, it’s time to get it up safely on the wall. Introducing the Kanto F3760, a low-profile, fixed wall mount which lets your TV sit an inch from the wall, leaving just enough room for your cables.Read More
With solid steel construction and a powder-coated finish, this fixed wall mount is built to last. With quick release cables, you can easily access your cables and modify the placement of your TV.
Peace of mind in securing your new TV.
Quick Lock Mechanism
Horizontal Leveling Screws
The F3760 is designed with two rows of mounting slots for extra strength. Using four lag bolts to support heavier TVs up to 150 pounds, this fixed TV mount provides offset abilities, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 27” wall plate mounts on 16” and 24” stud spacing.
The F3760 is compatible with a range of VESA patterns from 50×50 up to 600×400.
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.
Once your mount is installed you can still move the position of your TV left or right. Smoothly slide your TV across the wall plate to get the perfect viewing position. The range of movement depends on your TV size.
The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.
Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it’s perfectly aligned.
General Specs | |
| Product Weight (lbs.) | 5.7 |
| Tilt | No |
| Mount Type | Fixed |
| Low Profile | No |
| Outdoor Approved | No |
| Smart Compatible | No |
| Wifi Capable | No |
| TV Size's up to (in.) | 70 |
| Weight Capacity (lbs.) | 150 |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 50×50 to 600×400 |
| Manufacturer Warranty | 5 Year |
| Number Of Mounts | 1 |
General | |
| TV Sizes: | 37” to 70” |
| Weight Allowance: | 150 lbs (68 kg) |
| VESA Sizes: | 50×50 to 600×400 |
| Wall Plate: | 27.4″ (69.7 cm); Accommodates dual studs with up to 24″ spacing |
| Profile: | Sits 1″ (2.5 cm) from the wall |
| Material: | Solid steel with durable powder coated finish and adjustable horizontal leveling. |
| Contents: | Installation Manual; All mounting hardware for wood stud and concrete installation |
| Warranty: | 5 years |
| Shipping box weight: | 7 lbs (3.2 kg) |
| Shipping box dimensions: | 28.6” x 8.9” x 1.6” (72.5 x 22.5 x 4 cm) |
| Product weight: | 5.7 lb (2.6 kg) |
